đź“š ICS3U S2

Trading Cards, Part 2

Tuesday, November 26, 20244 min read

Objective

Significantly revise your original trading card, or create a new one, by making use of the techniques you have learned since the midpoint of this module.

Make a card that has the look and feel of the broader examples of trading cards for sports, board games, video games, or other areas of interest.

Purpose

An opportunity to demonstrate your understanding of the following concepts:

  • abstraction using helper views
  • arrays (lists)
  • navigation or tab views
  • custom shapes

Success criteria and exemplar

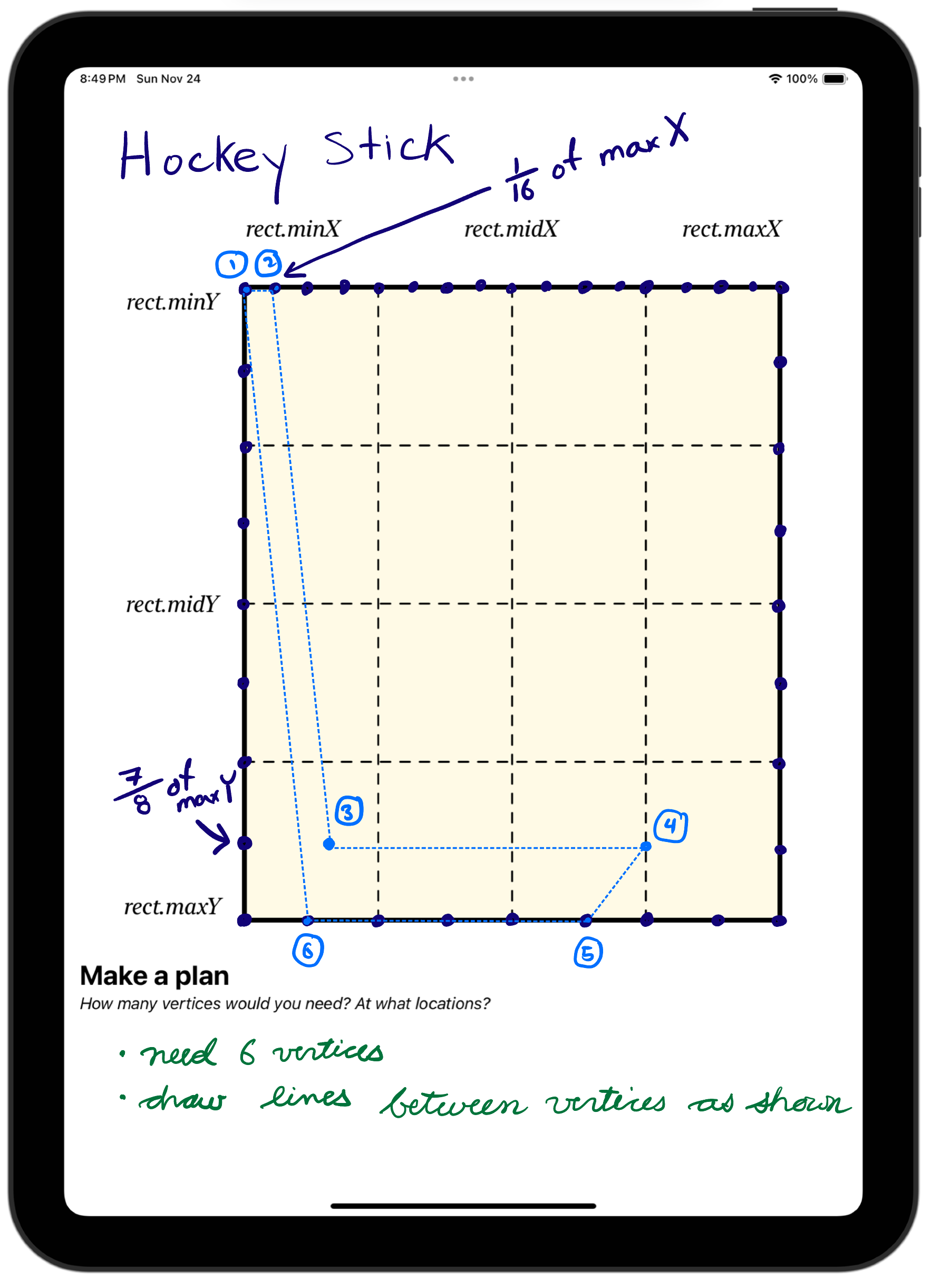

  1. To really exceed expectations, make a plan for, and then implement, a custom shape that you will define and use in your new and improved trading card.

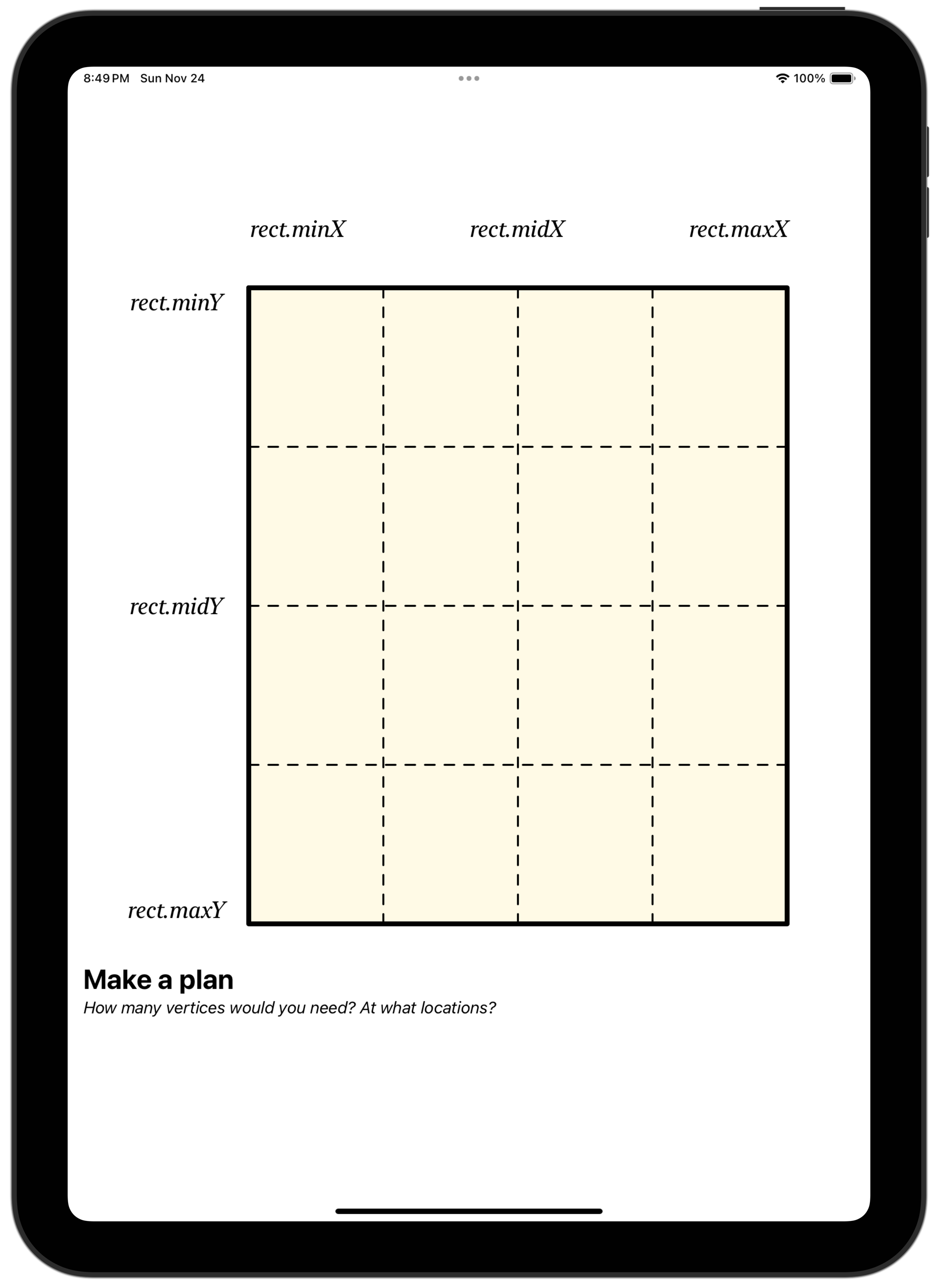

    Use this template.

    For example:

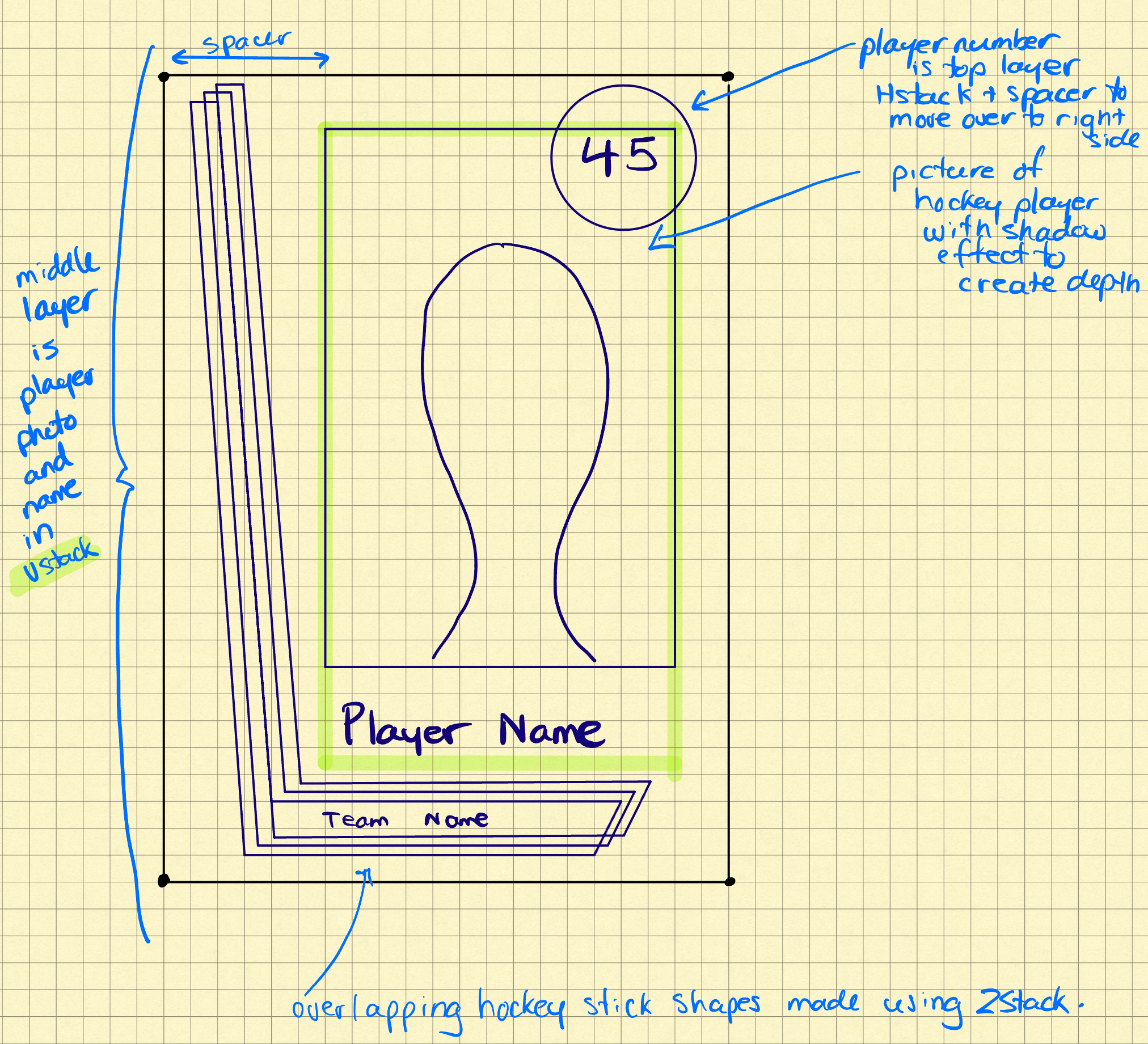

  2. Make a plan on paper for at least some element of the design of your revised trading card.

    For example:

  3. Then organize an Xcode project using the techniques we have learned to create your card – it is OK if your final design varies from your plan – that will happen sometimes as part of the creative process:

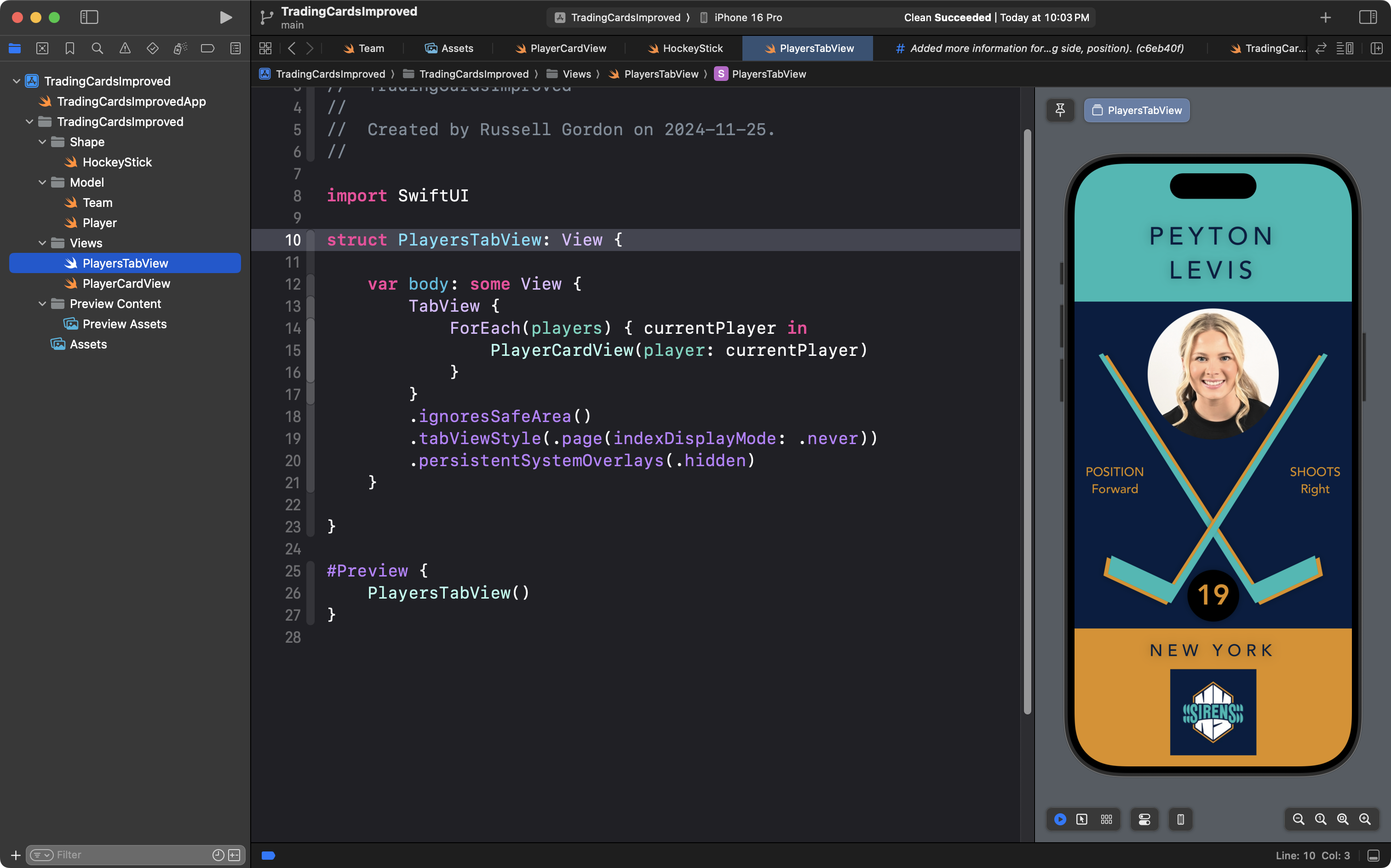

  4. Create at least three different cards that the user of your app can navigate between, using either a list and navigation links, or a paged tab view – the code to produce a paged tab view is shown in the screenshot above:

  1. Be sure to write code that follows established style conventions.

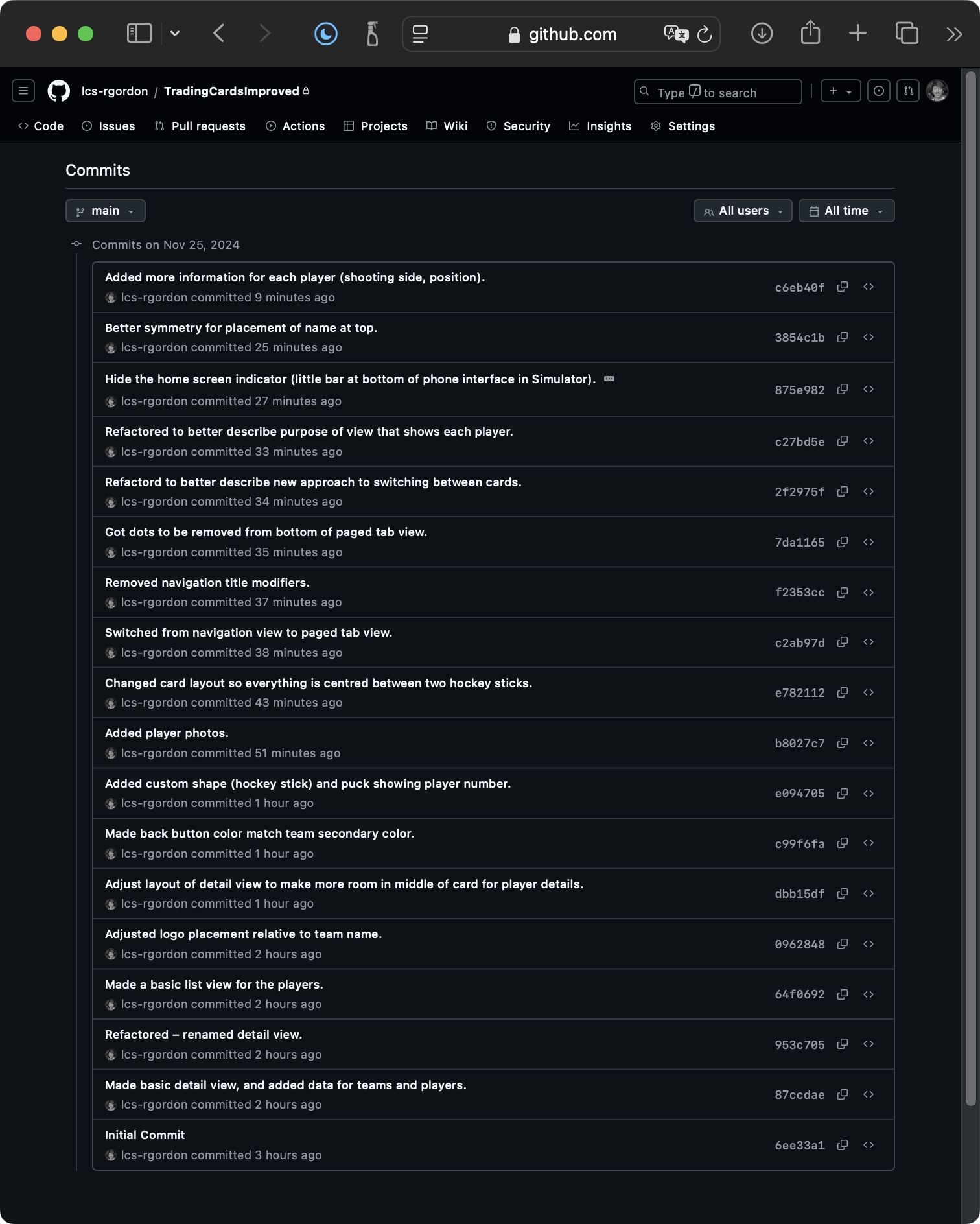

  2. Use source control well by committing and pushing your work to a remote on GitHub at regular intervals.

What you’ll need to begin

  • Xcode
  • the SF Symbols App installed on your computer, also for reference
  • your copy of SwiftUI Views Mastery, downloaded to your computer, so you can look up examples as needed

Progress and due date

The task is due no later than 11 PM on Saturday, November 30, 2024.

After each class, on Notion, be sure to:

NOTE

Your work is not considered as handed in until the GitHub remote has been shared and you have committed and pushed all your work.

Further examples

Here are some examples of possible layouts that you could aim to reproduce, or use as inspiration for a similar layout:

Tips

Overlays

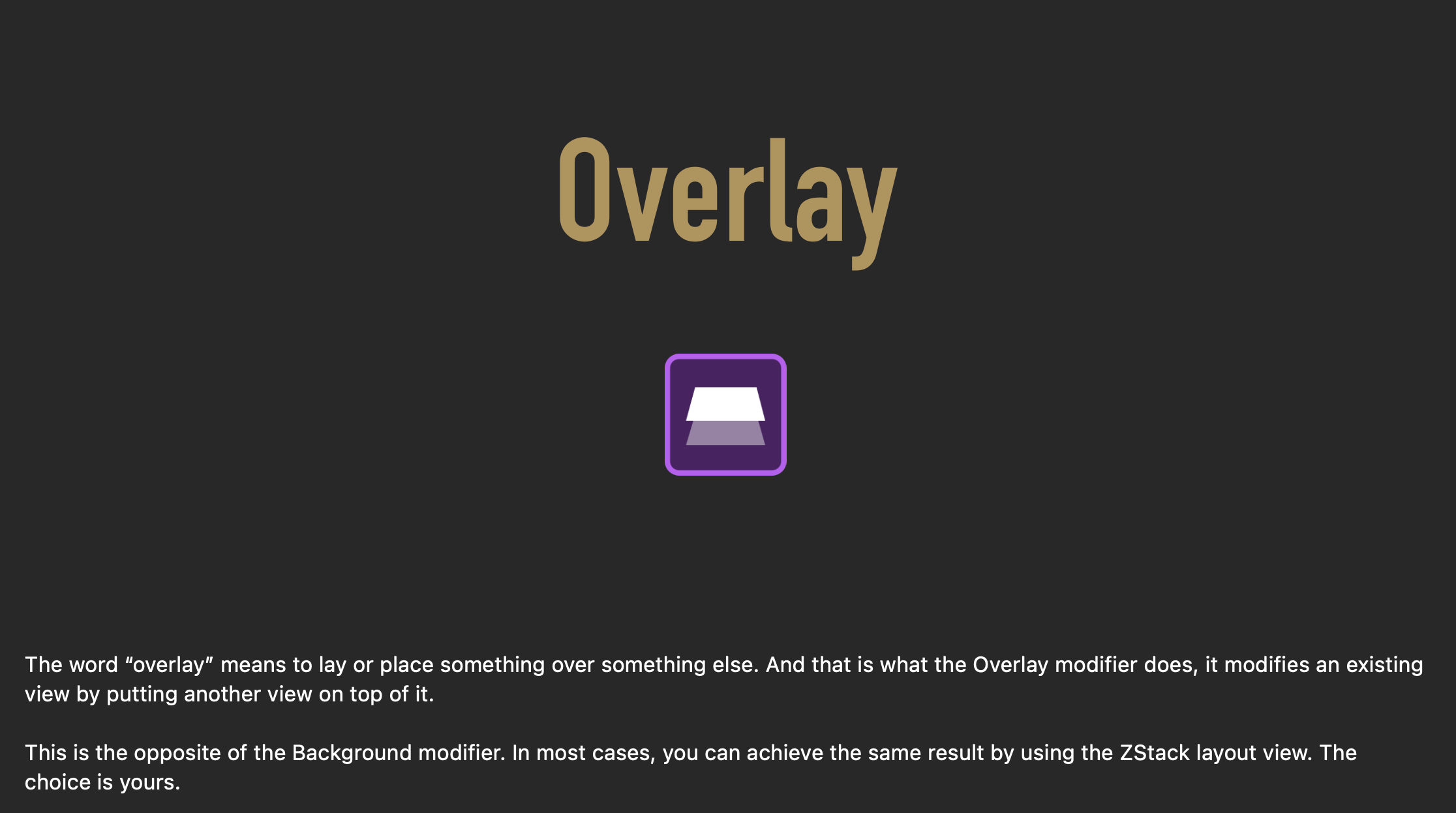

The .overlay view modifier is a convenient alternative to using a ZStack and may be useful depending on your needs – you are strongly recommended to consult pages 801 to 804 in SwiftUI Views Mastery:

Typefaces

You can use other typefaces in iOS applications.

Consult the iOS Fonts website for a quick reference.

TIP

Page 478 in SwiftUI Views Mastery has examples of how to use custom fonts, as well.

Rotation (2D)

Any view in SwiftUI can be rotated using the .rotationEffect view modifier.

Here is a short example of how rotation of views might be used to create a nice effect:

TIP

Read more about rotating views in two dimensions on page 901 of SwiftUI Views Mastery.

Rotation (3D)

There is also a .rotation3DEffect view modifier.

Here is a short example of how this might be used to create a nice effect:

TIP

Read more about rotating views in three dimensions on page 904 of SwiftUI Views Mastery.

Custom colours

You can absolute create custom colours (or clone colours from existing apps or webpages).

Here is a mini-tutorial on how to create custom colour sets.

Gradients

We can use gradients to fill a shape or as a background – a gradient is a transition from one colour to at least one other colour.

Here is an example of what this might look like, using a Blue Jays theme and some custom colors:

TIP

Read more about linear gradients on page 654 of SwiftUI Views Mastery.

There are other types of gradients you can use too (see page 639).

Image Editing

Sometimes it’s nice to be able to extract an image from a photograph, to use it in our apps:

Read this mini-tutorial to learn how to extract the subject of a photograph from it’s background.

NOTE

It’s only acceptable to copy images like this from the Internet for an academic exercise like this one. Were you looking for images to use in an actual app you wish to release to the public, you would need to either purchase the rights to use that image, or find an image that is licensed for the uses you need.

Final advice

IMPORTANT

Do not use frames for positioning. Your layout should work well on multiple screen sizes.

Put another way, use frames only to size the width or height of an image, but not both.

When did we do this?
